Features
- Widely used across industries including open-pit mining, demolition, and landscaping.
- Suitable for screening sand, topsoil, compost, gravel, rocks, crushed concrete, fine particles, etc., on construction sites and in remote areas.
- Compatible with compact tractors, small to medium excavators, and skid steer loaders, making it suitable for most commercial inventories.

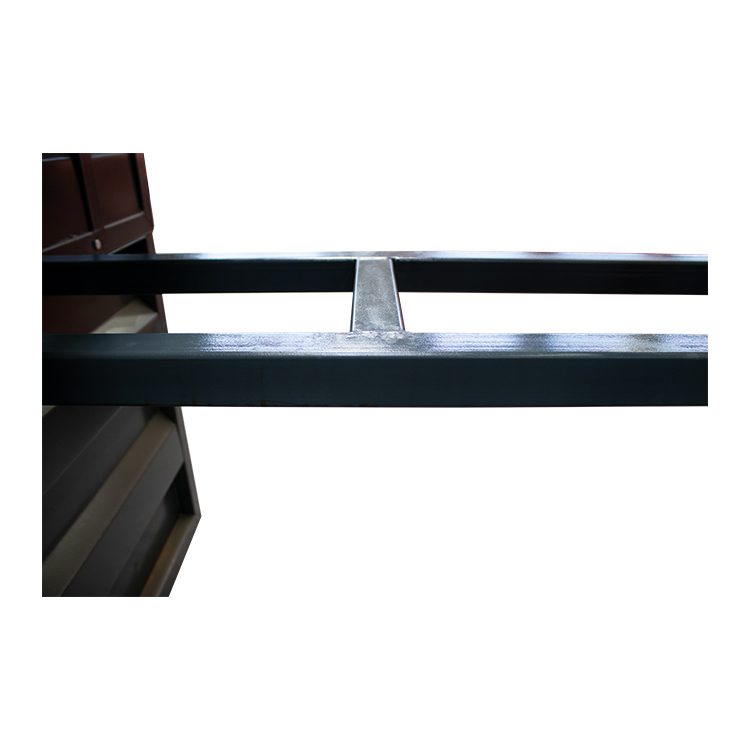

- Equipped with two standard pallet fork lift points for easy loading and unloading, Simple and durable structure.
- No need for trailers or other specialized equipment, reducing labor costs, High productivity.
- Interchangeable screens provide flexibility and versatility.
Specifications
| Specification Category | Specific Details |
|---|---|
| Dimensions | Length × Width × Height: 86.42″ × 58.1″ × 88.98″ |
| Production Capacity | 20-50 tons/hour |
| Screening Area | 29.17 square feet |
| Rated Power | 480V, 0.75 KW |
| Weight | Approximately 1450 pounds |
| Maximum Discharge Width | 7′ 2.64″ |
| Screen Mesh Specifications | – Standard Aperture: 0.66″
– Available Sizes (North America): 0.24″ to 1.57″ – Feature: Quick and convenient screen replacement |
